TimeBlur
Average the input over the shutter.
Average the input over the shutter. Oink evaluates whole frames only: each sample time is rounded to its frame, so a shutter inside one frame gives that frame (sub-frame motion is not blurred).
| Node | TimeBlur |
|---|---|
| Menu | Time › TimeBlur |
| Names in each format | |
| .oink comp (JSON) | "type": "OC_N_timeblur" |
| .nk script | TimeBlur (how .nk import works) |
| Python | nuke.createNode("TimeBlur") |
| Assistant (MCP) | create_node(type="TimeBlur") |
| Tab search | timeblur, or its initials tb |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Image | image |
| output 0 | Image | image |

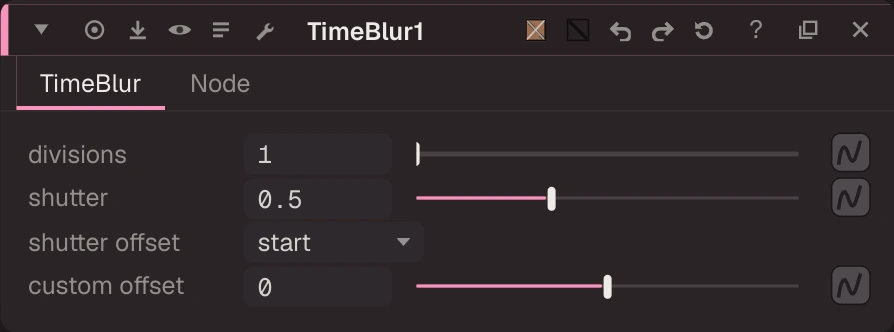

Knobs
Panel tab TimeBlur, in panel order.
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
divisions | divisions | float | 1 | 1 to 64 (integer) | divisions | |
shutter | shutter | float | 0.5 | 0 to 4 | shutter | |
shutteroffset | shutter offset | menu | start | centred, start, end, custom | shutteroffset | |
shuttercustomoffset | custom offset | float | 0 | -2 to 2 | shuttercustomoffset |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
