Slate
A VFX review slate on the slate frame, burn-ins on the other frames.
| Node | Slate |
|---|---|
| Menu | Draw › Slate |
| Names in each format | |
| .oink comp (JSON) | "type": "OC_N_slate" |
| .nk script | none: written as an Oink node |
| Python | nuke.createNode("OC_N_slate") |
| Assistant (MCP) | create_node(type="Slate") |
| Tab search | slate |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Image | image |
| input 1 | Thumbnail | image |
| output 0 | Image | image |

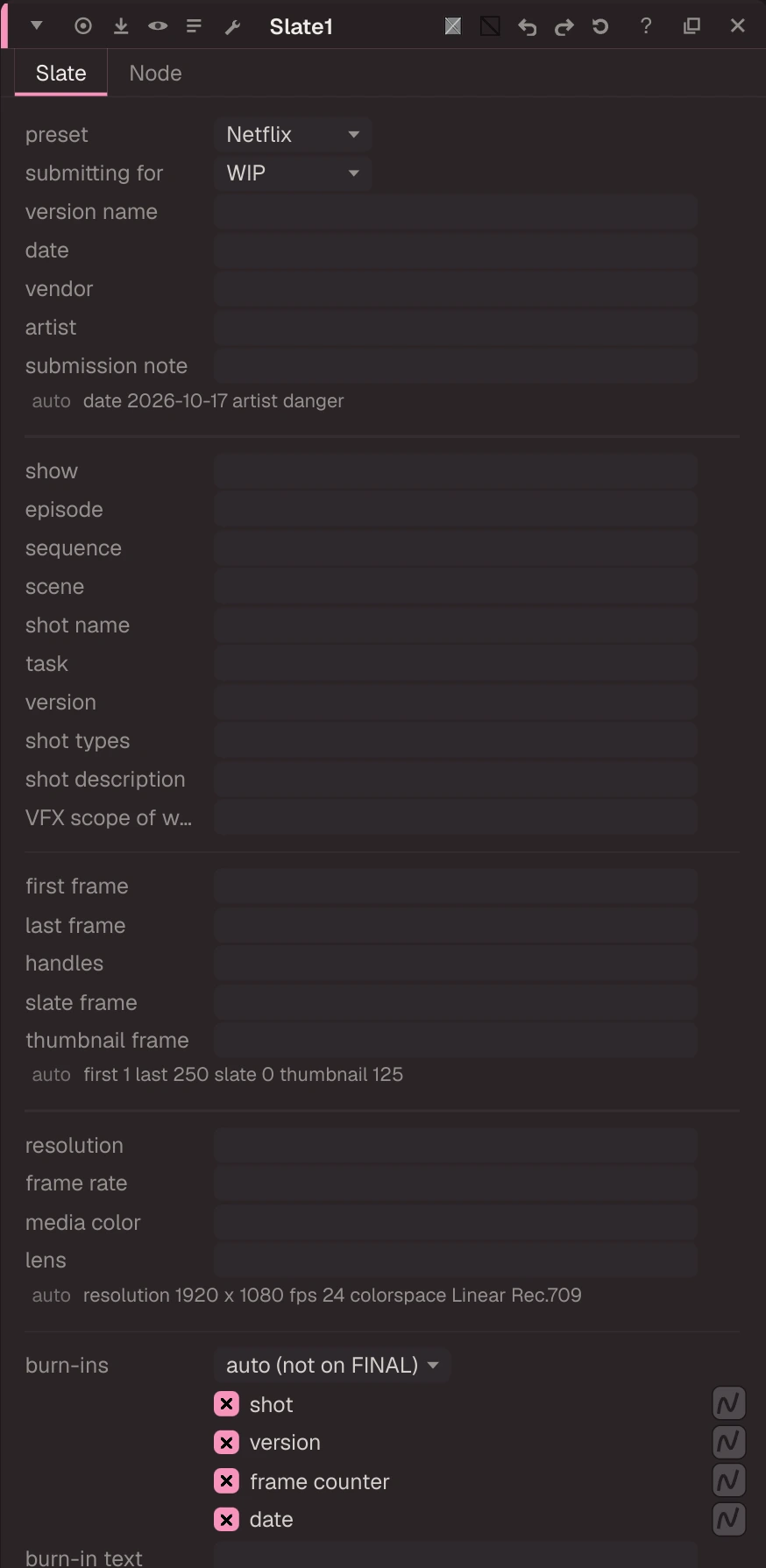

Knobs
Knobs from the node definition (this node has no panel layout in the app yet).
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string | ||||
preset | preset | string | Netflix | |||
submission | submitting for | enum | WIP | WIP, FINAL, PLATE, TEMP | ||
show | show | string | ||||
version_name | version name | string | ||||
date | date | string | ||||
shot_types | shot types | string | ||||
description | shot description | string | ||||
scope | VFX scope of work | string | ||||
notes | submission note | string | ||||
vendor | vendor | string | ||||
artist | artist | string | ||||
shot | shot | string | ||||
episode | episode | string | ||||
sequence | sequence | string | ||||
scene | scene | string | ||||
task | task | string | ||||
version | version | string | ||||
first | first | string | ||||
last | last | string | ||||
handles | handles | string | ||||
resolution | resolution | string | ||||
fps | fps | string | ||||
colorspace | media color | string | ||||
lens | lens | string | ||||
slate_frame | slate frame | string | Empty = first frame - 1 (preset) | |||
thumb_frame | thumbnail frame | string | Empty = the middle of the range | |||
burnins | burn-ins | enum | AUTO | AUTO, ON, OFF | ||
burn_shot | shot | boolean | true | |||
burn_version | version | boolean | true | |||
burn_frame | frame counter | boolean | true | |||
burn_date | date | boolean | true | |||
burn_text | burn-in text | string | ||||
final_crop | final picture area | float ×4 | 0, 0, 0, 0 | -3.4028234663852886e+38 to 3.4028234663852886e+38 | ||
scale | font scale | float | 1 | 0.2 to 3 | ||
font | font | string | ||||
encode | graphics encoding | enum | SRGB | SRGB, REC709, RAW |
