EnvironmentLight
Ambient light; with a `map` (lat-long image) the surface normal looks it up.
| Node | EnvironmentLight |
|---|---|
| Menu | 3D › EnvironmentLight |
| Names in each format | |
| .oink comp (JSON) | "type": "OC_N_environmentlight" |
| .nk script | EnvironmentLight, also imports Environment (how .nk import works) |
| Python | nuke.createNode("EnvironmentLight") |
| Assistant (MCP) | create_node(type="EnvironmentLight") |
| Tab search | environmentlight, or its initials el |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | axis | scene |
| input 1 | map | image |
| output 0 | scene | scene |

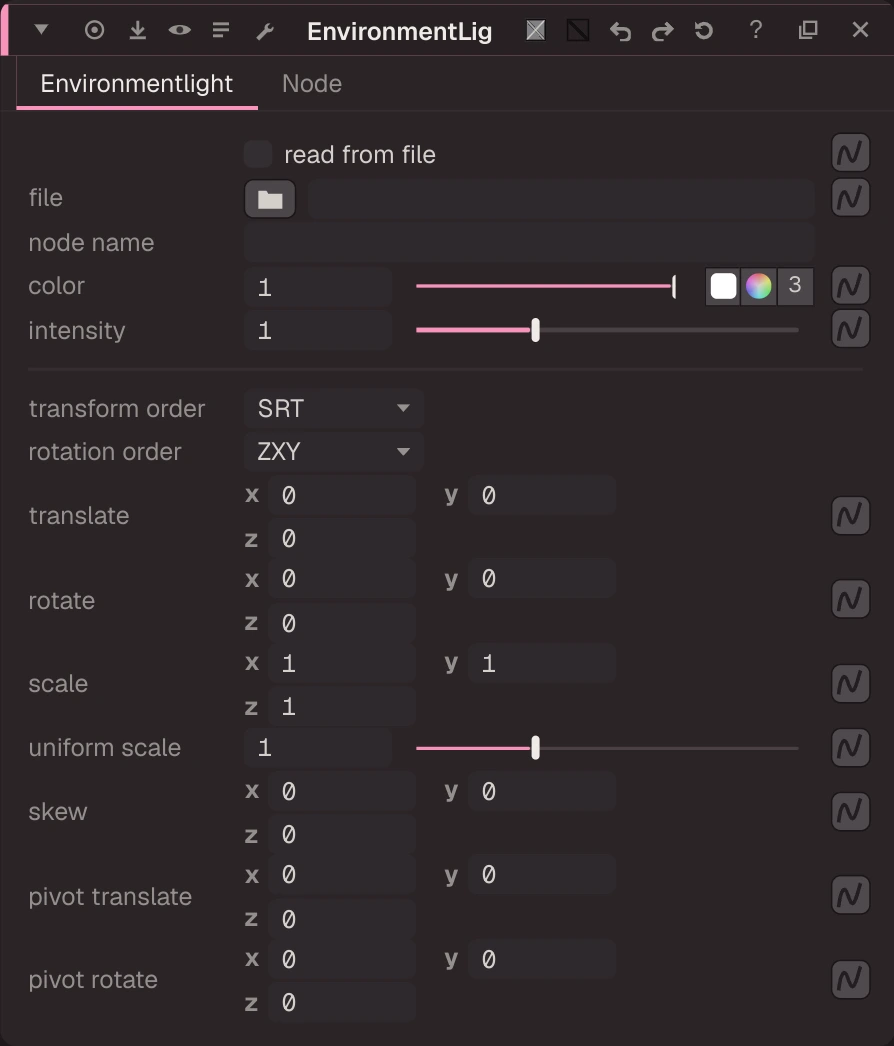

Knobs
Panel tab Environmentlight, in panel order.
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
read_from_file | read from file | bool | false | |||
file | file | file | ||||
fbx_node_name | node name | text | ||||
color | color | colour ×3 | 1, 1, 1 | 0 to 1 | ||
intensity | intensity | float | 1 | 0 to 10 | intensity | |
xform_order | transform order | menu | SRT | SRT, STR, RST, RTS, TSR, TRS | xform_order | |
rot_order | rotation order | menu | ZXY | XYZ, XZY, YXZ, YZX, ZXY, ZYX | rot_order | |
translate | translate | vector ×3 | 0, 0, 0 | -100 to 100 | translate | |
rotate | rotate | vector ×3 | 0, 0, 0 | -180 to 180 | rotate | |
scaling | scale | vector ×3 | 1, 1, 1 | 0 to 10 | scaling | |
uniform_scale | uniform scale | float | 1 | 0 to 10 | uniform_scale | |
skew | skew | vector ×3 | 0, 0, 0 | -1 to 1 | skew | |
pivot_translate | pivot translate | vector ×3 | 0, 0, 0 | -100 to 100 | pivot_translate | |
pivot_rotate | pivot rotate | vector ×3 | 0, 0, 0 | -180 to 180 | pivot_rotate |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string | ||||
live_local | Live Read Local Knobs | string |
Knob names in .nk scripts
| .nk knob | Knob here |
|---|---|
pivot | pivot_translate |
Other .nk knobs use the same name here. See .nk import.
