DeepCrop

Keep samples inside a bbox and a depth range.

raw .mdPress ? for keys

Node	DeepCrop
Menu	Deep › DeepCrop
Names in each format
.oink comp (JSON)	`"type": "OC_N_deepcrop"`
.nk script	`DeepCrop` (how .nk import works)
Python	`nuke.createNode("DeepCrop")`
Assistant (MCP)	`create_node(type="DeepCrop")`
Tab search	`deepcrop`, or its initials `dc`

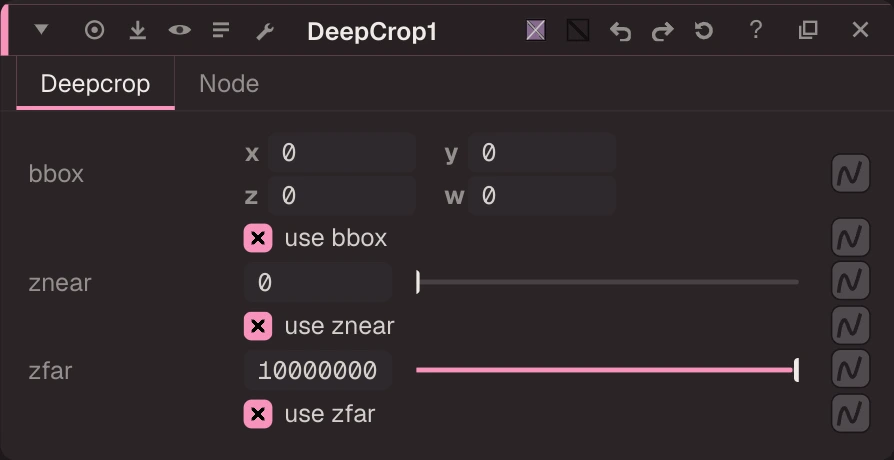

DeepCrop properties

Inputs and outputs

Port	Name	Type
input 0	Deep	image
output 0	Image	image

Knobs

Panel tab Deepcrop, in panel order.

Knob	Label	Type	Default	Range / values	.nk knob	Description
`bbox`	bbox	vector ×4	`0, 0, 0, 0`	-10000 to 10000	`bbox`	x y r t (Nuke px, y up); all 0 = no xy crop
`use_bbox`	use bbox	bool	`true`		`use_bbox`
`znear`	znear	float	`0`	0 to 1000	`znear`
`use_znear`	use znear	bool	`true`		`use_znear`
`zfar`	zfar	float	`10000000000`	0 to 10000000000	`zfar`
`use_zfar`	use zfar	bool	`true`		`use_zfar`

Other knobs (Python, .nk and the assistant; not on the panel)

Knob	Label	Type	Default	Range / values	.nk knob	Description
`gl_color`	Viewer Controls Color	float ×3	`0, 0, 0`	0 to 1
`postage_stamp_frame`	Static Frame	int	`1`	-2147483648 to 2147483647
`lifetimeStart`	Lifetime Start	int	`0`	-2147483648 to 2147483647
`lifetimeEnd`	Lifetime End	int	`100`	-2147483648 to 2147483647
`useLifetime`	Use Lifetime	boolean	`false`
`cached`	Cached	boolean	`false`
`bookmark`	Bookmark	boolean	`false`
`dope_sheet`	Dope Sheet	boolean	`false`
`clone_group`	Clone Group	string
`link_source`	Link Source	string
`link_overrides`	Link Overrides	string
`split_views`	Split Views	string
