HueCorrect
Curves over hue (red, yellow, green, cyan, blue, magenta) that change saturation, luminance and red / green / blue gain, and suppress a channel (r_sup / g_sup / b_sup) for the hues you choose, e.g.
Curves over hue (red, yellow, green, cyan, blue, magenta) that change saturation, luminance and red / green / blue gain, and suppress a channel (r_sup / g_sup / b_sup) for the hues you choose, e.g. to take spill out of one hue range only. A grey pixel has no hue, so it reads the curves at the red end only.
| Node | HueCorrect |
|---|---|
| Menu | Color › HueCorrect |
| Names in each format | |
| .oink comp (JSON) | "type": "OC_N_huecorrect" |
| .nk script | HueCorrect (how .nk import works) |
| Python | nuke.createNode("HueCorrect") |
| Assistant (MCP) | create_node(type="HueCorrect") |
| Tab search | huecorrect, or its initials hc |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Image | image |
| input 1 | mask | image |
| output 0 | Image | image |

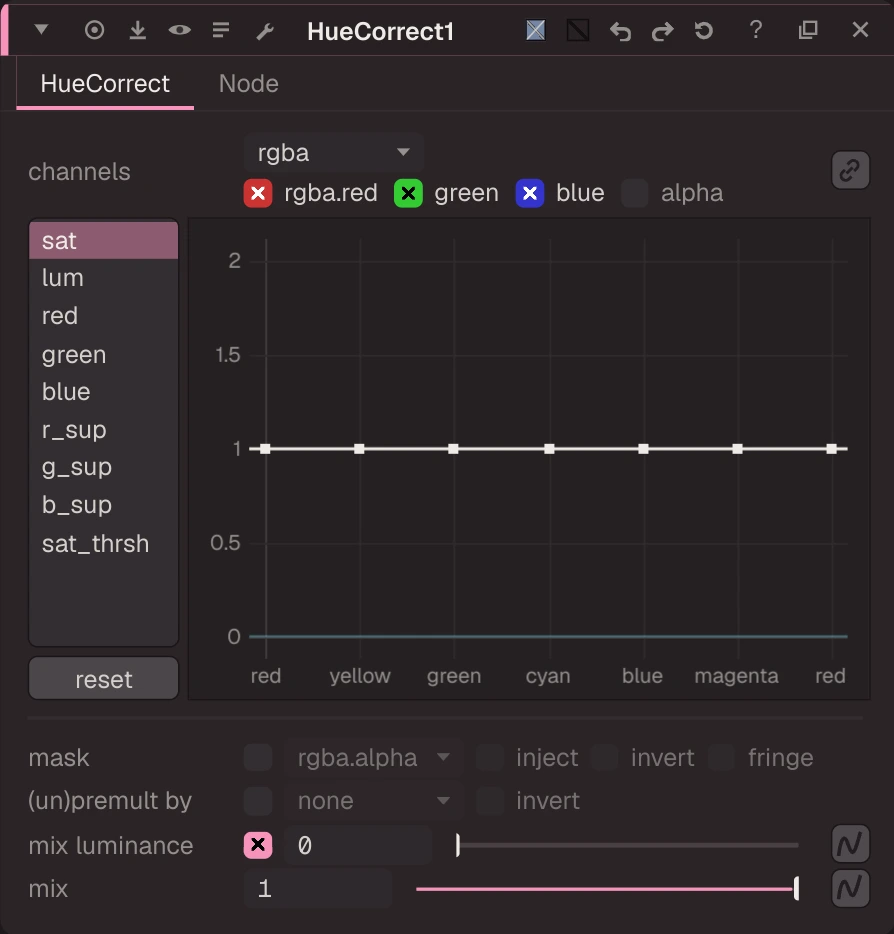

Knobs
Panel tab HueCorrect, in panel order.
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
channels | channels | menu | rgb | rgba, rgb, alpha, all, none | Layer the op applies to: rgb, rgba, alpha, all, none, <layer> or <layer>.<ch> | |
hue | hue | curves | {sat {} lum {} red {} green {} blue {} r_sup {} g_sup {} b_sup {} sat_thrsh {}} | the curve set: sat, lum, red, green, blue, r_sup, g_sup, b_sup, sat_thrsh (pixels less | ||
mask_channel | mask | menu | none | none, rgba.alpha, rgba.red, rgba.green, rgba.blue | Mask channel, e.g. rgba.alpha (none = no mask) | |
inject | inject | bool | false | Copy the mask into mask.a for nodes downstream | ||
invert_mask | invert | bool | false | invert_mask | ||
fringe | fringe | bool | false | Only apply the effect at the edges of the mask | ||
unpremult | (un)premult by | menu | none | none, rgba.alpha | ||
invert_unpremult | invert | bool | false | (Un)premultiply by 1 - alpha | ||
enable_mix_luminance | mix luminance | bool | true | enable_mix_luminance | ||
mix_luminance | mix luminance | float | 0 | 0 to 1 | mix_luminance | |
mix | mix | float | 1 | 0 to 1 | mix |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
