Retime
Maps the input range onto an output range at a speed (both output ends locked: the speed that fits), with reverse, before / after (continue, loop, bounce, hold, black), a box filter whose width is spe
Maps the input range onto an output range at a speed (both output ends locked: the speed that fits), with reverse, before / after (continue, loop, bounce, hold, black), a box filter whose width is speed x shutter, and a warp curve on the TimeWarp tab. For motion-vector retiming use Kronos. Before and after start on hold.
| Node | Retime |
|---|---|
| Menu | Time › Retime |
| Names in each format | |
| .oink comp (JSON) | "type": "OC_N_nkretime" |
| .nk script | Retime (how .nk import works) |
| Python | nuke.createNode("Retime") |
| Assistant (MCP) | create_node(type="Retime") |
| Tab search | retime |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Image | image |
| output 0 | Image | image |

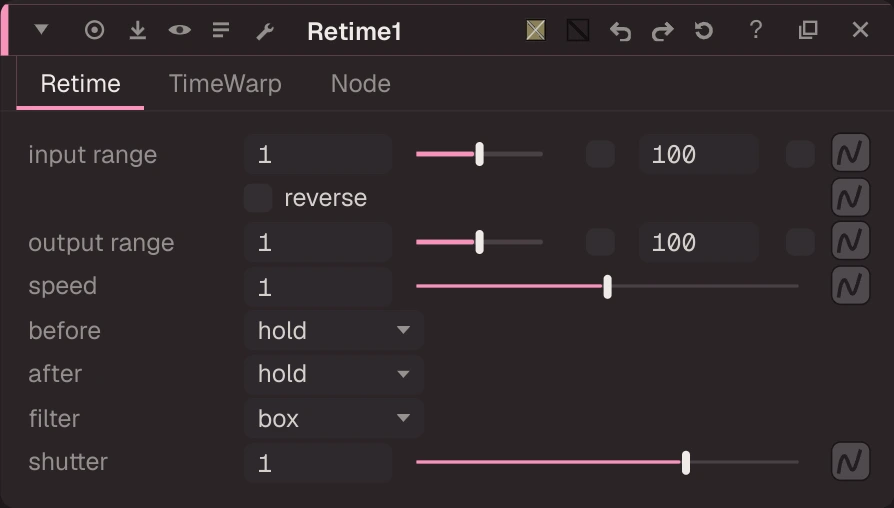

Knobs
Panel tab Retime, in panel order.
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
input_first | input range | float | 1 | -100000 to 100000 | input.first | |
input_first_lock | bool | false | input.first_lock | Off: the input clip's first frame | ||
input_last | to | float | 100 | -100000 to 100000 | input.last | |
input_last_lock | bool | false | input.last_lock | Off: the input clip's last frame | ||
reverse | reverse | bool | false | reverse | ||
output_first | output range | float | 1 | -100000 to 100000 | output.first | |
output_first_lock | bool | false | output.first_lock | |||
output_last | to | float | 100 | -100000 to 100000 | output.last | |
output_last_lock | bool | false | output.last_lock | |||
speed | speed | float | 1 | 0 to 4 | speed | |
before | before | menu | hold | continue, loop, bounce, hold, black | before | |
after | after | menu | hold | continue, loop, bounce, hold, black | after | |
filter | filter | menu | box | none, nearest, box | filter | |
shutter | shutter | float | 1 | 0 to 2 | shutter | |
warp | warp | curves | {warp {curve 0 1}} | warp | TimeWarp tab curve: output position (0-1) -> input position (0-1) |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string | ||||
time | time | string | time | Nuke's hidden time knob (kept for .nk) |
Knob names in .nk scripts
| .nk knob | Knob here |
|---|---|
input.first | input_first |
input.first_lock | input_first_lock |
input.last | input_last |
input.last_lock | input_last_lock |
output.first | output_first |
output.first_lock | output_first_lock |
output.last | output_last |
output.last_lock | output_last_lock |
Other .nk knobs use the same name here. See .nk import.
