FrameBlend
Average several frames.
| Node | FrameBlend |
|---|---|
| Menu | Time › FrameBlend |
| Names in each format | |
| .oink comp (JSON) | "type": "OC_N_frameblend" |
| .nk script | FrameBlend (how .nk import works) |
| Python | nuke.createNode("FrameBlend") |
| Assistant (MCP) | create_node(type="FrameBlend") |
| Tab search | frameblend, or its initials fb |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Image | image |
| output 0 | Image | image |

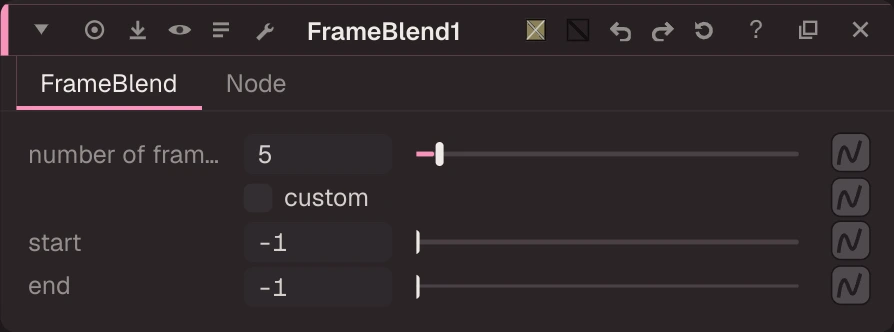

Knobs
Panel tab FrameBlend, in panel order.
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
numframes | number of frames | float | 5 | 1 to 64 (integer) | numframes | |
userange | custom | bool | false | userange | ||
startframe | start | float | -1 | -1 to 2000 | startframe | |
endframe | end | float | -1 | -1 to 2000 | endframe |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
