AddMix

A * lutA(a) + B * lutB(a).

raw .mdPress ? for keys

Node	AddMix
Menu	Merge › AddMix
Names in each format
.oink comp (JSON)	`"type": "OC_N_addmix"`
.nk script	`AddMix` (how .nk import works)
Python	`nuke.createNode("AddMix")`
Assistant (MCP)	`create_node(type="AddMix")`
Tab search	`addmix`, or its initials `am`

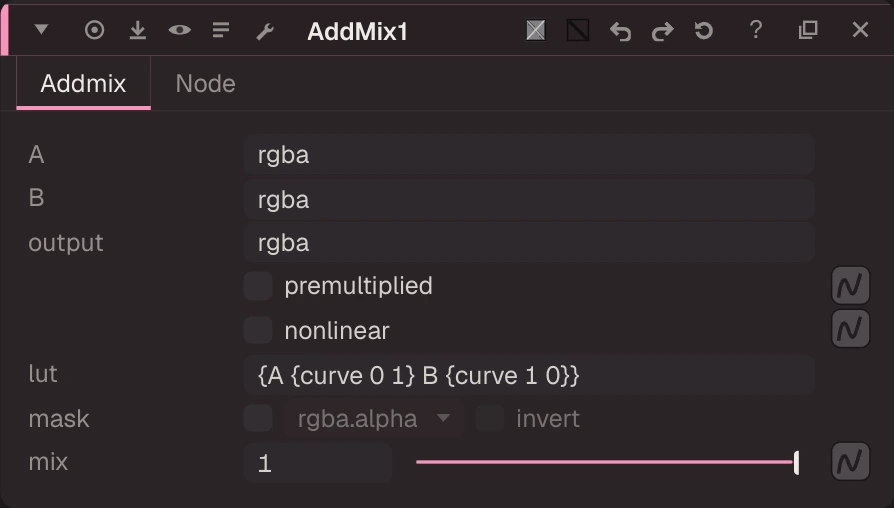

AddMix properties

Inputs and outputs

Port	Name	Type
input 0	A	image
input 1	B	image
input 2	mask	image
output 0	Image	image

Knobs

Panel tab Addmix, in panel order.

Knob	Label	Type	Default	Range / values	.nk knob	Description
`a_channels`	A	text	`rgba`		`A`	Layer taken from A
`b_channels`	B	text	`rgba`		`B`	Layer taken from B
`output`	output	text	`rgba`		`output`	Layer written: rgba, rgb, alpha or any layer name
`premultiplied`	premultiplied	bool	`false`		`premultiplied`
`nonlinear`	nonlinear	bool	`false`		`nonlinear`
`lut`	lut	text	`{A {curve 0 1} B {curve 1 0}}`
`mask_channel`	mask	menu	`none`	none, rgba.alpha, rgba.red, rgba.green, rgba.blue
`invert_mask`	invert	bool	`false`		`invert_mask`
`mix`	mix	float	`1`	0 to 1	`mix`

Other knobs (Python, .nk and the assistant; not on the panel)

Knob	Label	Type	Default	Range / values	.nk knob	Description
`gl_color`	Viewer Controls Color	float ×3	`0, 0, 0`	0 to 1
`postage_stamp_frame`	Static Frame	int	`1`	-2147483648 to 2147483647
`lifetimeStart`	Lifetime Start	int	`0`	-2147483648 to 2147483647
`lifetimeEnd`	Lifetime End	int	`100`	-2147483648 to 2147483647
`useLifetime`	Use Lifetime	boolean	`false`
`cached`	Cached	boolean	`false`
`bookmark`	Bookmark	boolean	`false`
`dope_sheet`	Dope Sheet	boolean	`false`
`clone_group`	Clone Group	string
`link_source`	Link Source	string
`link_overrides`	Link Overrides	string
`split_views`	Split Views	string

Knob names in .nk scripts

.nk knob	Knob here
`A`	`a_channels`
`B`	`b_channels`

Other .nk knobs use the same name here. See .nk import.
