OCIOFileTransform
Apply a LUT / colour transform file (.cube, .3dl, .spi1d, ...).
| Node | OCIOFileTransform |
|---|---|
| Menu | Color › OCIOFileTransform |
| Names in each format | |
| .oink comp (JSON) | "type": "OC_N_ociofiletransform" |
| .nk script | OCIOFileTransform (how .nk import works) |
| Python | nuke.createNode("OCIOFileTransform") |
| Assistant (MCP) | create_node(type="OCIOFileTransform") |
| Tab search | ociofiletransform, or its initials ocioft |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Image | image |
| input 1 | mask | image |
| output 0 | Image | image |

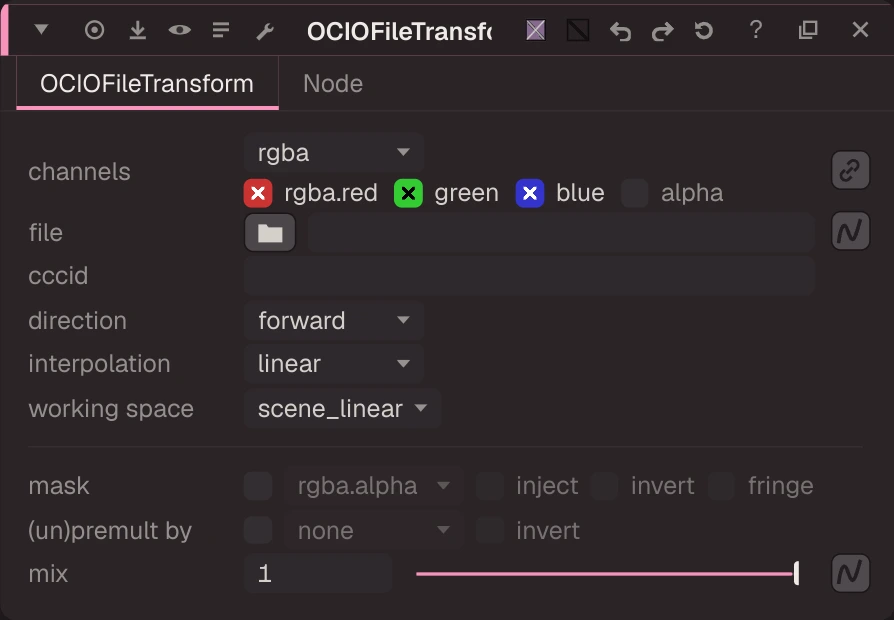

Knobs
Panel tab OCIOFileTransform, in panel order.
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
channels | channels | menu | rgb | rgba, rgb, alpha, all, none | channels | Layer the op applies to: rgb, rgba, alpha, all, none, <layer> or <layer>.<ch> |
file | file | file | file | |||
cccid | cccid | text | cccid | |||
direction | direction | menu | forward | forward, inverse | direction | |
interpolation | interpolation | menu | linear | nearest, linear, tetrahedral, best | interpolation | |
working_space | working space | menu | scene_linear | scene_linear | working_space | |
mask_channel | mask | menu | none | none, rgba.alpha, rgba.red, rgba.green, rgba.blue | Mask channel, e.g. rgba.alpha (none = no mask) | |
inject | inject | bool | false | Copy the mask into mask.a for nodes downstream | ||
invert_mask | invert | bool | false | invert_mask | ||
fringe | fringe | bool | false | Only apply the effect at the edges of the mask | ||
unpremult | (un)premult by | menu | none | none, rgba.alpha | unpremult | |
invert_unpremult | invert | bool | false | (Un)premultiply by 1 - alpha | ||
mix | mix | float | 1 | 0 to 1 | mix |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
