SpotLight

SpotLight node.

raw .mdPress ? for keys

Node	SpotLight
Menu	3D › SpotLight
Names in each format
.oink comp (JSON)	`"type": "OC_N_spotlight"`
.nk script	`SpotLight`, also imports `Spotlight` (how .nk import works)
Python	`nuke.createNode("SpotLight")`
Assistant (MCP)	`create_node(type="SpotLight")`
Tab search	`spotlight`, or its initials `sl`

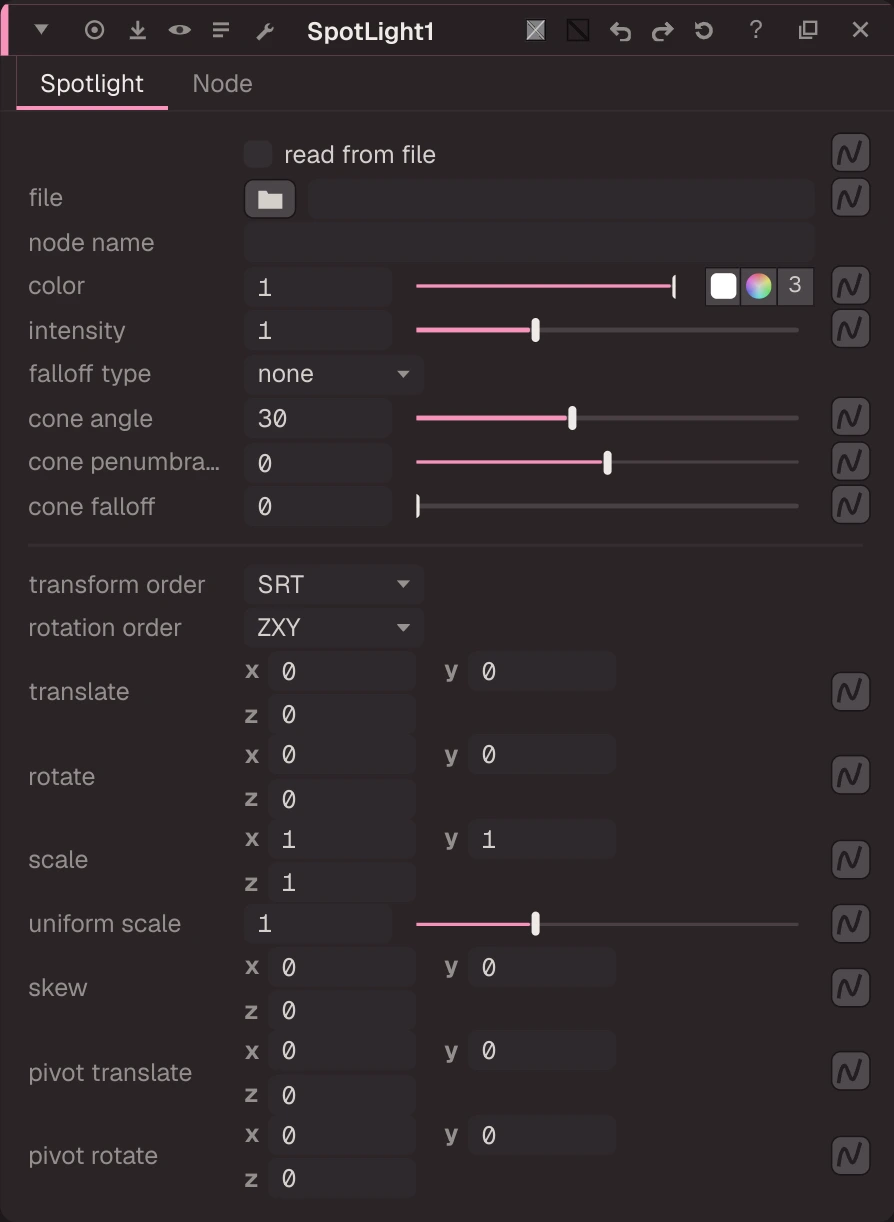

SpotLight properties

Inputs and outputs

Port	Name	Type
input 0	axis	scene
output 0	scene	scene

Knobs

Panel tab Spotlight, in panel order.

Knob	Label	Type	Default	Range / values	.nk knob	Description
`read_from_file`	read from file	bool	`false`
`file`	file	file
`fbx_node_name`	node name	text
`color`	color	colour ×3	`1, 1, 1`	0 to 1
`intensity`	intensity	float	`1`	0 to 10	`intensity`
`falloff_type`	falloff type	menu	`none`	none, linear, quadratic, cubic	`falloff_type`
`cone_angle`	cone angle	float	`30`	0 to 180	`cone_angle`
`cone_penumbra_angle`	cone penumbra angle	float	`0`	-60 to 60	`cone_penumbra_angle`
`cone_falloff`	cone falloff	float	`0`	0 to 100	`cone_falloff`
`xform_order`	transform order	menu	`SRT`	SRT, STR, RST, RTS, TSR, TRS	`xform_order`
`rot_order`	rotation order	menu	`ZXY`	XYZ, XZY, YXZ, YZX, ZXY, ZYX	`rot_order`
`translate`	translate	vector ×3	`0, 0, 0`	-100 to 100	`translate`
`rotate`	rotate	vector ×3	`0, 0, 0`	-180 to 180	`rotate`
`scaling`	scale	vector ×3	`1, 1, 1`	0 to 10	`scaling`
`uniform_scale`	uniform scale	float	`1`	0 to 10	`uniform_scale`
`skew`	skew	vector ×3	`0, 0, 0`	-1 to 1	`skew`
`pivot_translate`	pivot translate	vector ×3	`0, 0, 0`	-100 to 100	`pivot_translate`
`pivot_rotate`	pivot rotate	vector ×3	`0, 0, 0`	-180 to 180	`pivot_rotate`

Other knobs (Python, .nk and the assistant; not on the panel)

Knob	Label	Type	Default	Range / values	.nk knob	Description
`gl_color`	Viewer Controls Color	float ×3	`0, 0, 0`	0 to 1
`postage_stamp_frame`	Static Frame	int	`1`	-2147483648 to 2147483647
`lifetimeStart`	Lifetime Start	int	`0`	-2147483648 to 2147483647
`lifetimeEnd`	Lifetime End	int	`100`	-2147483648 to 2147483647
`useLifetime`	Use Lifetime	boolean	`false`
`cached`	Cached	boolean	`false`
`bookmark`	Bookmark	boolean	`false`
`dope_sheet`	Dope Sheet	boolean	`false`
`clone_group`	Clone Group	string
`link_source`	Link Source	string
`link_overrides`	Link Overrides	string
`split_views`	Split Views	string
`live_local`	Live Read Local Knobs	string

Knob names in .nk scripts

.nk knob	Knob here
`pivot`	`pivot_translate`

Other .nk knobs use the same name here. See .nk import.
