GeoExport

GeoExport node.

raw .mdPress ? for keys

Node	GeoExport
Menu	3D › GeoExport
Names in each format
.oink comp (JSON)	`"type": "OC_N_geoexport"`
.nk script	`GeoExport`, also imports `WriteGeo` (how .nk import works)
Python	`nuke.createNode("GeoExport")`
Assistant (MCP)	`create_node(type="GeoExport")`
Tab search	`geoexport`, or its initials `ge`

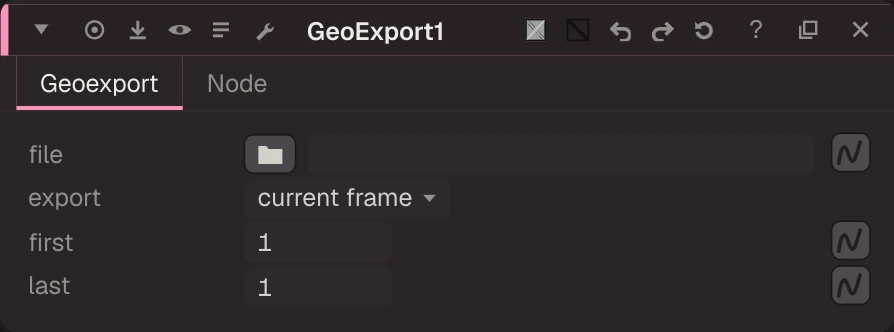

GeoExport properties

Inputs and outputs

Port	Name	Type
input 0	scene	scene
output 0	scene	scene

Knobs

Panel tab Geoexport, in panel order.

Knob	Label	Type	Default	Range / values	.nk knob	Description
`file`	file	file			`file`
`export_range`	export	menu	`current`	current (current frame), range (frame range)
`first`	first	float	`1`	-10000 to 100000 (integer)	`first`
`last`	last	float	`1`	-10000 to 100000 (integer)	`last`

Other knobs (Python, .nk and the assistant; not on the panel)

Knob	Label	Type	Default	Range / values	.nk knob	Description
`gl_color`	Viewer Controls Color	float ×3	`0, 0, 0`	0 to 1
`postage_stamp_frame`	Static Frame	int	`1`	-2147483648 to 2147483647
`lifetimeStart`	Lifetime Start	int	`0`	-2147483648 to 2147483647
`lifetimeEnd`	Lifetime End	int	`100`	-2147483648 to 2147483647
`useLifetime`	Use Lifetime	boolean	`false`
`cached`	Cached	boolean	`false`
`bookmark`	Bookmark	boolean	`false`
`dope_sheet`	Dope Sheet	boolean	`false`
`clone_group`	Clone Group	string
`link_source`	Link Source	string
`link_overrides`	Link Overrides	string
`split_views`	Split Views	string
