MotionBlur3D

Blur from camera motion and depth.

raw .mdPress ? for keys

Node	MotionBlur3D
Menu	Filter › MotionBlur3D
Names in each format
.oink comp (JSON)	`"type": "OC_N_motionblur3d"`
.nk script	`MotionBlur3D` (how .nk import works)
Python	`nuke.createNode("MotionBlur3D")`
Assistant (MCP)	`create_node(type="MotionBlur3D")`
Tab search	`motionblur3d`, or its initials `mb3d`

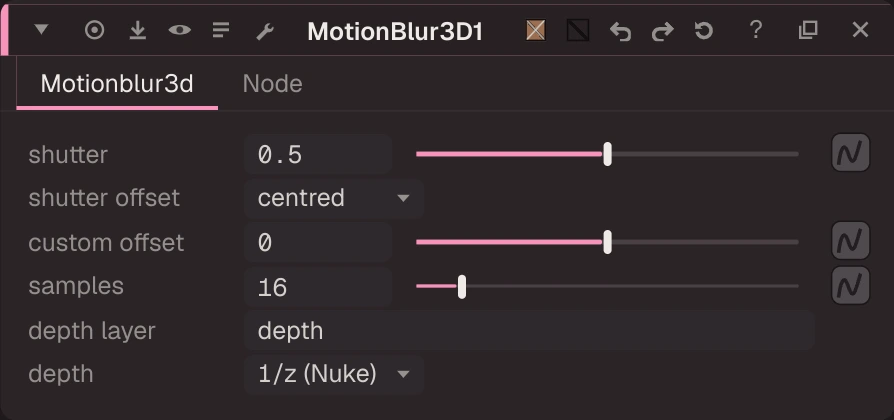

MotionBlur3D properties

Inputs and outputs

Port	Name	Type
input 0	Image	image
input 1	cam	image
output 0	Image	image

Knobs

Panel tab Motionblur3d, in panel order.

Knob	Label	Type	Default	Range / values	.nk knob	Description
`shutter`	shutter	float	`0.5`	0 to 2	`shutter`
`shutteroffset`	shutter offset	menu	`centred`	centred, start, end, custom	`shutteroffset`
`shuttercustomoffset`	custom offset	float	`0`	-2 to 2	`shuttercustomoffset`
`samples`	samples	float	`16`	1 to 128 (integer)	`samples`
`depth`	depth layer	text	`depth`
`depth_mode`	depth	menu	`one_over_z`	one_over_z (1/z (Nuke)), distance (z)

Other knobs (Python, .nk and the assistant; not on the panel)

Knob	Label	Type	Default	Range / values	.nk knob	Description
`gl_color`	Viewer Controls Color	float ×3	`0, 0, 0`	0 to 1
`postage_stamp_frame`	Static Frame	int	`1`	-2147483648 to 2147483647
`lifetimeStart`	Lifetime Start	int	`0`	-2147483648 to 2147483647
`lifetimeEnd`	Lifetime End	int	`100`	-2147483648 to 2147483647
`useLifetime`	Use Lifetime	boolean	`false`
`cached`	Cached	boolean	`false`
`bookmark`	Bookmark	boolean	`false`
`dope_sheet`	Dope Sheet	boolean	`false`
`clone_group`	Clone Group	string
`link_source`	Link Source	string
`link_overrides`	Link Overrides	string
`split_views`	Split Views	string
