DeepRead
Reads a deep EXR (per-pixel sample lists); a flat file is read as one sample per pixel.
Reads a deep EXR (per-pixel sample lists); a flat file is read as one sample per pixel. Frame numbers use #### or %04d in the file name.
| Node | DeepRead |
|---|---|
| Menu | Deep › DeepRead |
| Names in each format | |
| .oink comp (JSON) | "type": "OC_N_deepread" |
| .nk script | DeepRead (how .nk import works) |
| Python | nuke.createNode("DeepRead") |
| Assistant (MCP) | create_node(type="DeepRead") |
| Tab search | deepread, or its initials dr |
Localization
Like the Read node, DeepRead can read a local copy of its files: set localization policy and use Update for on demand files. See Localization.
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| output 0 | Image | image |

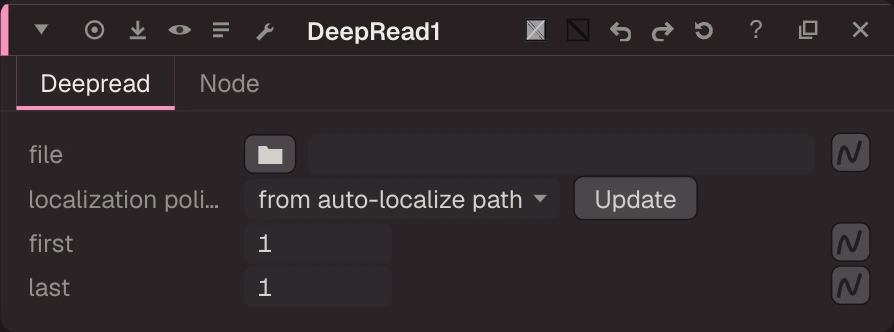

Knobs
Panel tab Deepread, in panel order.
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
filepath | file | file | file | |||
localization_policy | localization policy | menu | fromAutoLocalizePath | on, fromAutoLocalizePath (from auto-localize path), onDemand (on demand), off | localizationPolicy | when the deep files are copied to the local cache (.nk localizationPolicy). |
updateLocalization | Update | button (panel only) | Update: copy the files now, or copy again the ones whose source changed. | |||
first | first | float | 1 | 0 to 100000 (integer) | first | |
last | last | float | 1 | 0 to 100000 (integer) | last |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
Knob names in .nk scripts
| .nk knob | Knob here |
|---|---|
file | filepath |
localizationPolicy | localization_policy |
cacheLocal | localization_policy |
Other .nk knobs use the same name here. See .nk import.
Examples
Open these from Help › Examples…, or from the ? menu in this node's Properties panel.
- DeepMerge four deep passes (
examples/deep/deep_merge.oink): Weta's forest scene as four deep passes (Balls, Ground, Leaves, Trunks). DeepMerge combines the samples by depth, so the passes hold each other out with no mattes; DeepToImage flattens the result. Compare with LowResLeftView/composited.exr, the flat reference. - Read a deep EXR (
examples/io/read_deep.oink): One deep pass (Weta's Balls, 1024x576 left view) read with DeepRead and flattened with DeepToImage. Each pixel holds many samples with their own depth; DeepToImage composites them front to back.
