DeepFromImage

A flat image as one deep sample per pixel (OIIO deepen).

raw .mdPress ? for keys

Node	DeepFromImage
Menu	Deep › DeepFromImage
Names in each format
.oink comp (JSON)	`"type": "OC_N_deepfromimage"`
.nk script	`DeepFromImage` (how .nk import works)
Python	`nuke.createNode("DeepFromImage")`
Assistant (MCP)	`create_node(type="DeepFromImage")`
Tab search	`deepfromimage`, or its initials `dfi`

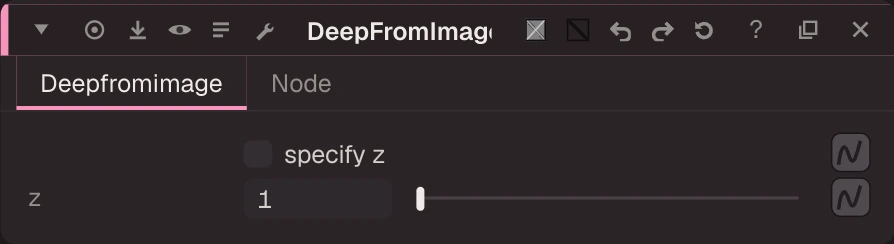

DeepFromImage properties

Inputs and outputs

Port	Name	Type
input 0	Image	image
output 0	Image	image

Knobs

Panel tab Deepfromimage, in panel order.

Knob	Label	Type	Default	Range / values	.nk knob	Description
`set_z`	specify z	bool	`false`		`set_z`	Use z for every sample (else the depth layer; 1/z)
`z`	z	float	`1`	0 to 10000	`z`

Other knobs (Python, .nk and the assistant; not on the panel)

Knob	Label	Type	Default	Range / values	.nk knob	Description
`gl_color`	Viewer Controls Color	float ×3	`0, 0, 0`	0 to 1
`postage_stamp_frame`	Static Frame	int	`1`	-2147483648 to 2147483647
`lifetimeStart`	Lifetime Start	int	`0`	-2147483648 to 2147483647
`lifetimeEnd`	Lifetime End	int	`100`	-2147483648 to 2147483647
`useLifetime`	Use Lifetime	boolean	`false`
`cached`	Cached	boolean	`false`
`bookmark`	Bookmark	boolean	`false`
`dope_sheet`	Dope Sheet	boolean	`false`
`clone_group`	Clone Group	string
`link_source`	Link Source	string
`link_overrides`	Link Overrides	string
`split_views`	Split Views	string
