FrameFixer
Rebuilds dropped or damaged frames from their neighbours.
Rebuilds dropped or damaged frames from their neighbours. Frames takes a frame list ("12 15-17"). Method: interpolate (RIFE 4.26 in the AI worker, from the nearest good frames before and after, at full size up to 4K, averaged with a reversed pass; two bad frames in a row get 1/3 and 2/3), hold previous, hold next. Connect a Mask to replace only the masked area (alpha; invert mask flips it). Other frames pass through. While RIFE runs the viewer shows the previous good frame; the job log is under Details.
| Node | FrameFixer |
|---|---|
| Menu | AI › FrameFixer |
| Names in each format | |
| .oink comp (JSON) | "type": "OC_N_framefixer" |
| .nk script | none: written as an Oink node |
| Python | nuke.createNode("OC_N_framefixer") |
| Assistant (MCP) | create_node(type="FrameFixer") |
| Tab search | framefixer, or its initials ff |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Source | image |
| input 1 | Mask | image |
| output 0 | Image | image |

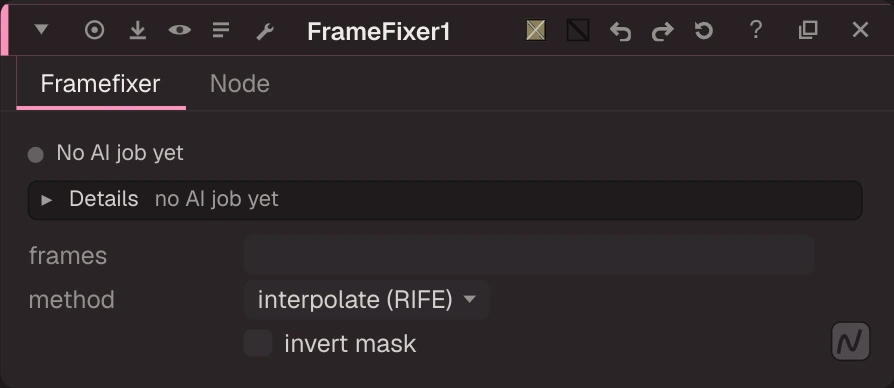

Knobs
Panel tab Framefixer, in panel order.
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
frames | frames | text | Frames to fix, e.g. '12 15-17' (spaces or commas) | |||
method | method | menu | interpolate | interpolate (interpolate (RIFE)), hold_previous (hold previous), hold_next (hold next) | ||
invert_mask | invert mask | bool | false |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
