AIDenoise
Denoise CG renders with OIDN (albedo + normal aware).
| Node | AIDenoise |
|---|---|
| Menu | AI › AIDenoise |
| Names in each format | |
| .oink comp (JSON) | "type": "OC_N_aidenoise" |
| .nk script | none: written as an Oink node |
| Python | nuke.createNode("OC_N_aidenoise") |
| Assistant (MCP) | create_node(type="AIDenoise") |
| Tab search | aidenoise, or its initials aid |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | Beauty | image |
| input 1 | Albedo | image |
| input 2 | Normal | image |
| output 0 | Image | image |

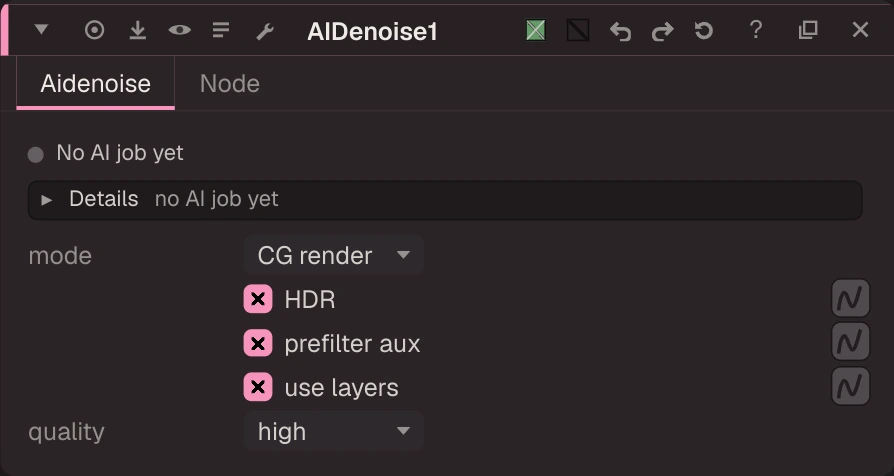

Knobs
Panel tab Aidenoise, in panel order.
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
mode | mode | menu | RENDER | RENDER (CG render), FOOTAGE (footage (experimental)) | ||
hdr | HDR | bool | true | Linear float input (values above 1) | ||
prefilter | prefilter aux | bool | true | Denoise albedo/normal first (use for noisy aux passes) | ||
use_layers | use layers | bool | true | Take albedo (diffuse_color) and normal (N) from the Beauty's layers | ||
quality | quality | menu | HIGH | HIGH (high), BALANCED (balanced), FAST (fast) |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
