GeoBindMaterial
The `mat` input's material (Project3DShader, an image as a texture) on the prims whose paths match `mask` (space-separated globs; a path also takes everything under it; empty = all meshes).
The mat input's material (Project3DShader, an image as a texture) on the prims
whose paths match mask (space-separated globs; a path also takes everything under it; empty = all meshes).
Scene Graph rows dropped on the mask knob fill it (ROADMAP 16.5, drag to project).
| Node | GeoBindMaterial |
|---|---|
| Menu | 3D › GeoBindMaterial |
| Names in each format | |
| .oink comp (JSON) | "type": "OC_N_geobindmaterial" |
| .nk script | GeoBindMaterial, also imports ApplyMaterial (how .nk import works) |
| Python | nuke.createNode("GeoBindMaterial") |
| Assistant (MCP) | create_node(type="GeoBindMaterial") |
| Tab search | geobindmaterial, or its initials gbm |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | scene | scene |
| input 1 | mat | image |
| output 0 | scene | scene |

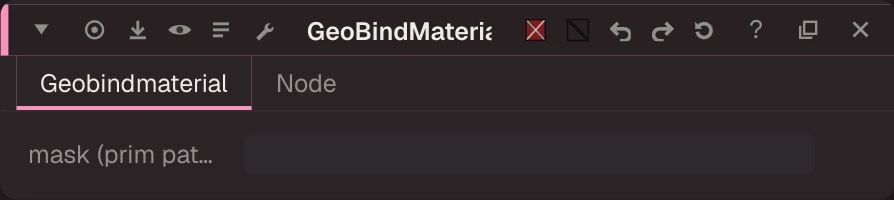

Knobs
Panel tab Geobindmaterial, in panel order.
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
mask | mask (prim paths) | text | mask_patterns | Prim paths to bind the material to (globs, space separated; empty = all) |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
Knob names in .nk scripts
| .nk knob | Knob here |
|---|---|
mask_patterns | mask |
Other .nk knobs use the same name here. See .nk import.
