GeoCard
GeoCard node.
| Node | GeoCard |
|---|---|
| Menu | 3D › GeoCard |
| Names in each format | |
| .oink comp (JSON) | "type": "OC_N_geocard" |
| .nk script | GeoCard, also imports Card, Card2 (how .nk import works) |
| Python | nuke.createNode("GeoCard") |
| Assistant (MCP) | create_node(type="GeoCard") |
| Tab search | geocard, or its initials gc |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | scene | scene |
| input 1 | mat | image |
| output 0 | scene | scene |
Knobs

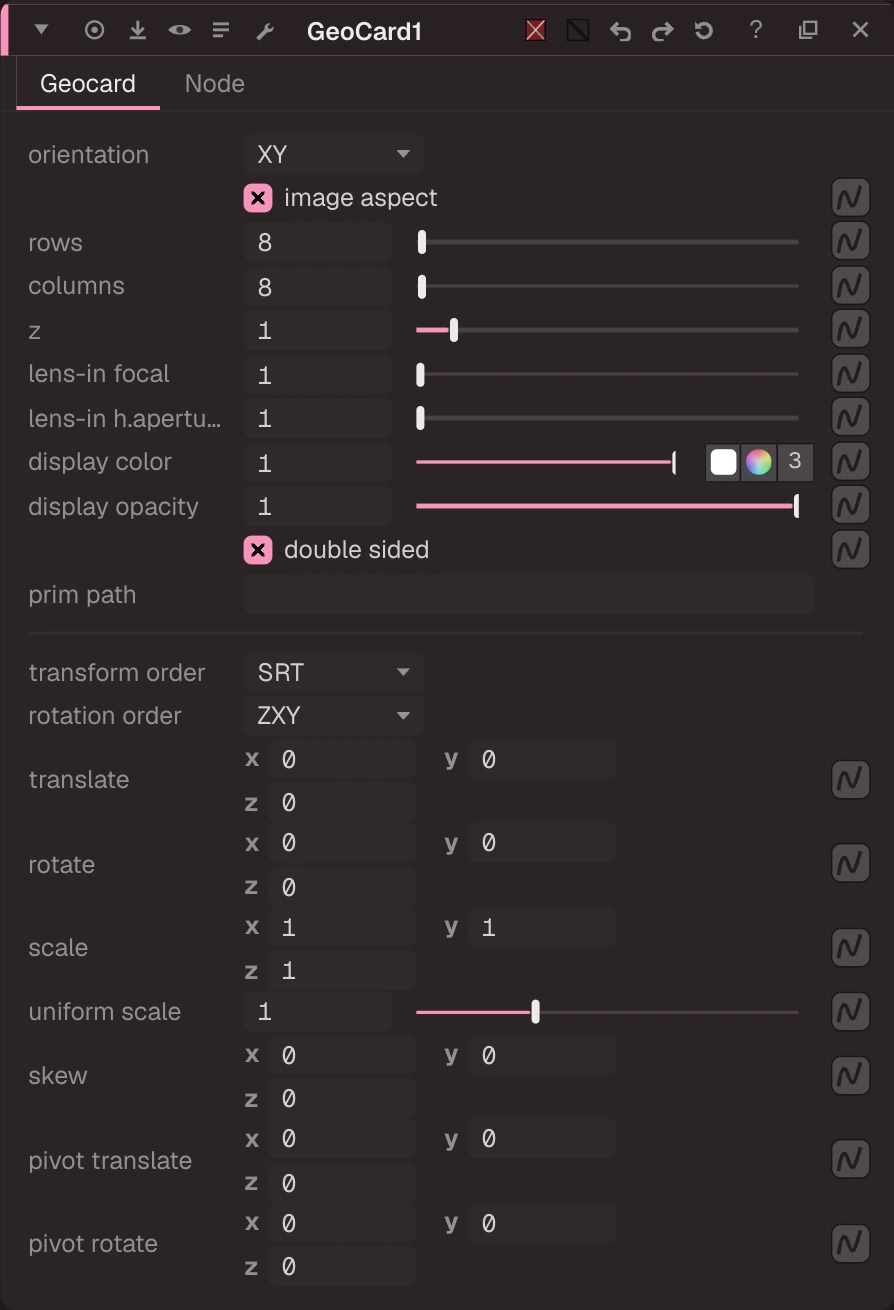

Panel tab Geocard, in panel order.
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
orientation | orientation | menu | XY | XY, YZ, ZX | orientation | |
image_aspect | image aspect | bool | true | image_aspect | ||
rows | rows | float | 8 | 1 to 512 (integer) | rows | |
columns | columns | float | 8 | 1 to 512 (integer) | columns | |
z | z | float | 1 | 0 to 100 | z | |
lens_in_focal | lens-in focal | float | 1 | 0.001 to 100 | lens_in_focal | |
lens_in_haperture | lens-in h.aperture | float | 1 | 0.001 to 100 | lens_in_haperture | |
display_color | display color | colour ×3 | 1, 1, 1 | 0 to 1 | display_color | |
display_opacity | display opacity | float | 1 | 0 to 1 | display_opacity | |
double_sided | double sided | bool | false | double_sided | ||
prim_path | prim path | text | prim_path | |||
xform_order | transform order | menu | SRT | SRT, STR, RST, RTS, TSR, TRS | xform_order | |
rot_order | rotation order | menu | ZXY | XYZ, XZY, YXZ, YZX, ZXY, ZYX | rot_order | |
translate | translate | vector ×3 | 0, 0, 0 | -100 to 100 | translate | |
rotate | rotate | vector ×3 | 0, 0, 0 | -180 to 180 | rotate | |
scaling | scale | vector ×3 | 1, 1, 1 | 0 to 10 | scaling | |
uniform_scale | uniform scale | float | 1 | 0 to 10 | uniform_scale | |
skew | skew | vector ×3 | 0, 0, 0 | -1 to 1 | skew | |
pivot_translate | pivot translate | vector ×3 | 0, 0, 0 | -100 to 100 | pivot_translate | |
pivot_rotate | pivot rotate | vector ×3 | 0, 0, 0 | -180 to 180 | pivot_rotate |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
Knob names in .nk scripts
| .nk knob | Knob here |
|---|---|
pivot | pivot_translate |
Other .nk knobs use the same name here. See .nk import.
Examples
Open these from Help › Examples…, or from the ? menu in this node's Properties panel.
- ScanlineRender: a textured card and a camera (
examples/3d/scanline_card_camera.oink): The classic Nuke 3D setup: a photo textures a Card, the Scene gathers geometry, a Camera looks at it and ScanlineRender draws it over a background. Move the Camera or the Card to see the perspective change.
