OCIODisplay

Apply an OCIO display / view transform.

raw .mdPress ? for keys

Node	OCIODisplay
Menu	Color › OCIODisplay
Names in each format
.oink comp (JSON)	`"type": "OC_N_ociodisplay"`
.nk script	`OCIODisplay` (how .nk import works)
Python	`nuke.createNode("OCIODisplay")`
Assistant (MCP)	`create_node(type="OCIODisplay")`
Tab search	`ociodisplay`, or its initials `ociod`

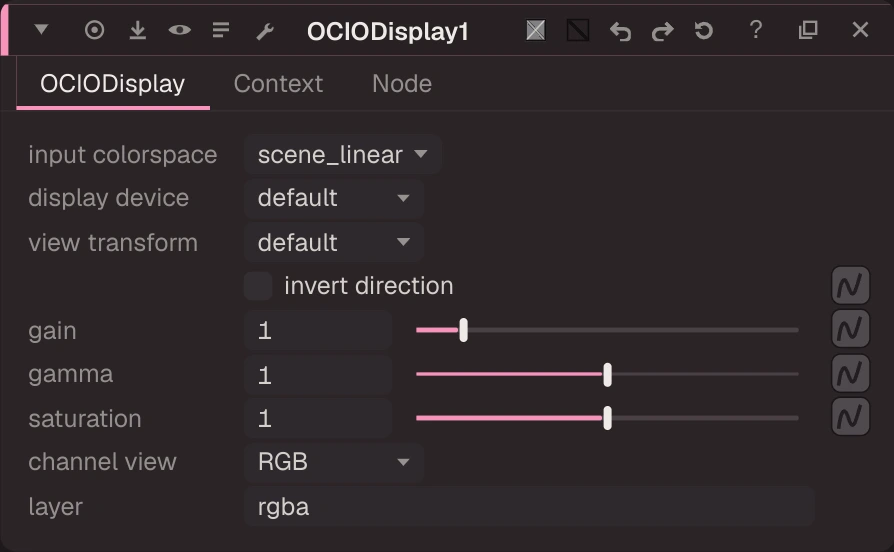

OCIODisplay properties

Inputs and outputs

Port	Name	Type
input 0	Image	image
input 1	mask	image
output 0	Image	image

Knobs

Panel tab OCIODisplay, in panel order.

Knob	Label	Type	Default	Range / values	.nk knob	Description
`colorspace`	input colorspace	menu	`scene_linear`	scene_linear	`colorspace`
`display`	display device	menu	`default`	default	`display`
`view`	view transform	menu	`default`	default	`view`
`invert`	invert direction	bool	`false`		`invert`
`gain`	gain	float	`1`	0 to 64	`gain`
`gamma`	gamma	float	`1`	0 to 4	`gamma`
`saturation`	saturation	float	`1`	0 to 4	`saturation`
`channel_selector`	channel view	menu	`RGB`	RGB, R, G, B, A, Luminance	`channel_selector`
`layer`	layer	text	`rgba`		`layer`
`key1`	key1	text			`key1`
`value1`	value1	text			`value1`
`key2`	key2	text			`key2`
`value2`	value2	text			`value2`
`key3`	key3	text			`key3`
`value3`	value3	text			`value3`
`key4`	key4	text			`key4`
`value4`	value4	text			`value4`

Other knobs (Python, .nk and the assistant; not on the panel)

Knob	Label	Type	Default	Range / values	.nk knob	Description
`gl_color`	Viewer Controls Color	float ×3	`0, 0, 0`	0 to 1
`postage_stamp_frame`	Static Frame	int	`1`	-2147483648 to 2147483647
`lifetimeStart`	Lifetime Start	int	`0`	-2147483648 to 2147483647
`lifetimeEnd`	Lifetime End	int	`100`	-2147483648 to 2147483647
`useLifetime`	Use Lifetime	boolean	`false`
`cached`	Cached	boolean	`false`
`bookmark`	Bookmark	boolean	`false`
`dope_sheet`	Dope Sheet	boolean	`false`
`clone_group`	Clone Group	string
`link_source`	Link Source	string
`link_overrides`	Link Overrides	string
`split_views`	Split Views	string
`channels`	Channels	string	`rgba`			Layer the op applies to: rgb, rgba, alpha, all, none, <layer> or <layer>.<ch>
`mask_channel`	Mask	string	`none`			Mask channel, e.g. rgba.alpha (none = no mask)
`invert_mask`	Invert	boolean	`false`		`invert_mask`
`inject`	inject	boolean	`false`			Copy the mask into mask.a for nodes downstream
`fringe`	fringe	boolean	`false`			Only apply the effect at the edges of the mask
`unpremult`	(Un)premult by	enum	`none`	none, rgba.alpha
`invert_unpremult`	invert	boolean	`false`			(Un)premultiply by 1 - alpha
`mix`	Mix	float	`1`	0 to 1
