Project3DShader
Project3DShader node.
| Node | Project3DShader |
|---|---|
| Menu | 3D › Project3DShader |
| Names in each format | |
| .oink comp (JSON) | "type": "OC_N_project3dshader" |
| .nk script | Project3DShader, also imports Project3D, Project3D2 (how .nk import works) |
| Python | nuke.createNode("Project3DShader") |
| Assistant (MCP) | create_node(type="Project3DShader") |
| Tab search | project3dshader, or its initials p3ds |
Inputs and outputs
| Port | Name | Type |
|---|---|---|
| input 0 | img | image |
| input 1 | cam | scene |
| output 0 | Image | image |
Knobs

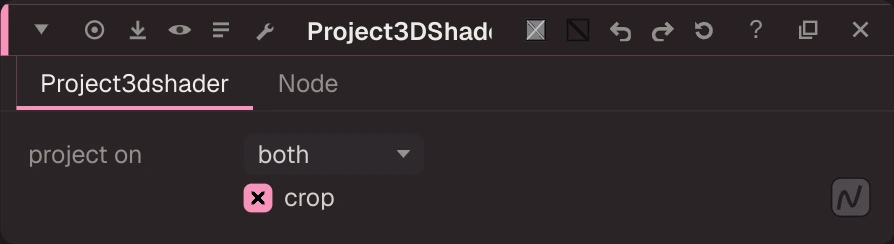

Panel tab Project3dshader, in panel order.
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
project_on | project on | menu | both | both, front, back | project_on | |
crop | crop | bool | true | crop |
Other knobs (Python, .nk and the assistant; not on the panel)
| Knob | Label | Type | Default | Range / values | .nk knob | Description |
|---|---|---|---|---|---|---|
gl_color | Viewer Controls Color | float ×3 | 0, 0, 0 | 0 to 1 | ||
postage_stamp_frame | Static Frame | int | 1 | -2147483648 to 2147483647 | ||
lifetimeStart | Lifetime Start | int | 0 | -2147483648 to 2147483647 | ||
lifetimeEnd | Lifetime End | int | 100 | -2147483648 to 2147483647 | ||
useLifetime | Use Lifetime | boolean | false | |||
cached | Cached | boolean | false | |||
bookmark | Bookmark | boolean | false | |||
dope_sheet | Dope Sheet | boolean | false | |||
clone_group | Clone Group | string | ||||
link_source | Link Source | string | ||||
link_overrides | Link Overrides | string | ||||
split_views | Split Views | string |
