FrameRange FrameRange

FrameRange

Sets the clip's frame range with first_frame and last_frame (what the timeline shows with the range source on Input, and what Retime / Kronos take as their input range).

raw .md

Sets the clip's frame range with first_frame and last_frame (what the timeline shows with the range source on Input, and what Retime / Kronos take as their input range). Pixels pass through; reset takes the input's range.

NodeFrameRange
MenuTime › FrameRange
Names in each format
.oink comp (JSON)"type": "OC_N_framerange"
.nk scriptFrameRange (how .nk import works)
Pythonnuke.createNode("FrameRange")
Assistant (MCP)create_node(type="FrameRange")
Tab searchframerange, or its initials fr

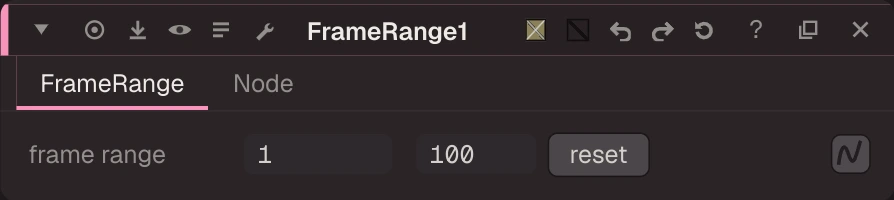

FrameRange properties

Inputs and outputs

PortNameType
input 0Imageimage
output 0Imageimage

Knobs

Panel tab FrameRange, in panel order.

KnobLabelTypeDefaultRange / values.nk knobDescription
first_frameframe rangefloat1-100000 to 100000 (integer)first_frame
last_frametofloat100-100000 to 100000 (integer)last_frame
resetresetbutton (panel only)

Other knobs (Python, .nk and the assistant; not on the panel)

KnobLabelTypeDefaultRange / values.nk knobDescription
gl_colorViewer Controls Colorfloat ×30, 0, 00 to 1
postage_stamp_frameStatic Frameint1-2147483648 to 2147483647
lifetimeStartLifetime Startint0-2147483648 to 2147483647
lifetimeEndLifetime Endint100-2147483648 to 2147483647
useLifetimeUse Lifetimebooleanfalse
cachedCachedbooleanfalse
bookmarkBookmarkbooleanfalse
dope_sheetDope Sheetbooleanfalse
clone_groupClone Groupstring
link_sourceLink Sourcestring
link_overridesLink Overridesstring
split_viewsSplit Viewsstring
timetimestringtimeNuke's hidden time knob (kept for .nk)

FrameHold

Shows one frame of the input at every frame (increment 0), or every Nth frame from the first frame.

Kronos

Retimes a clip with motion vectors.
